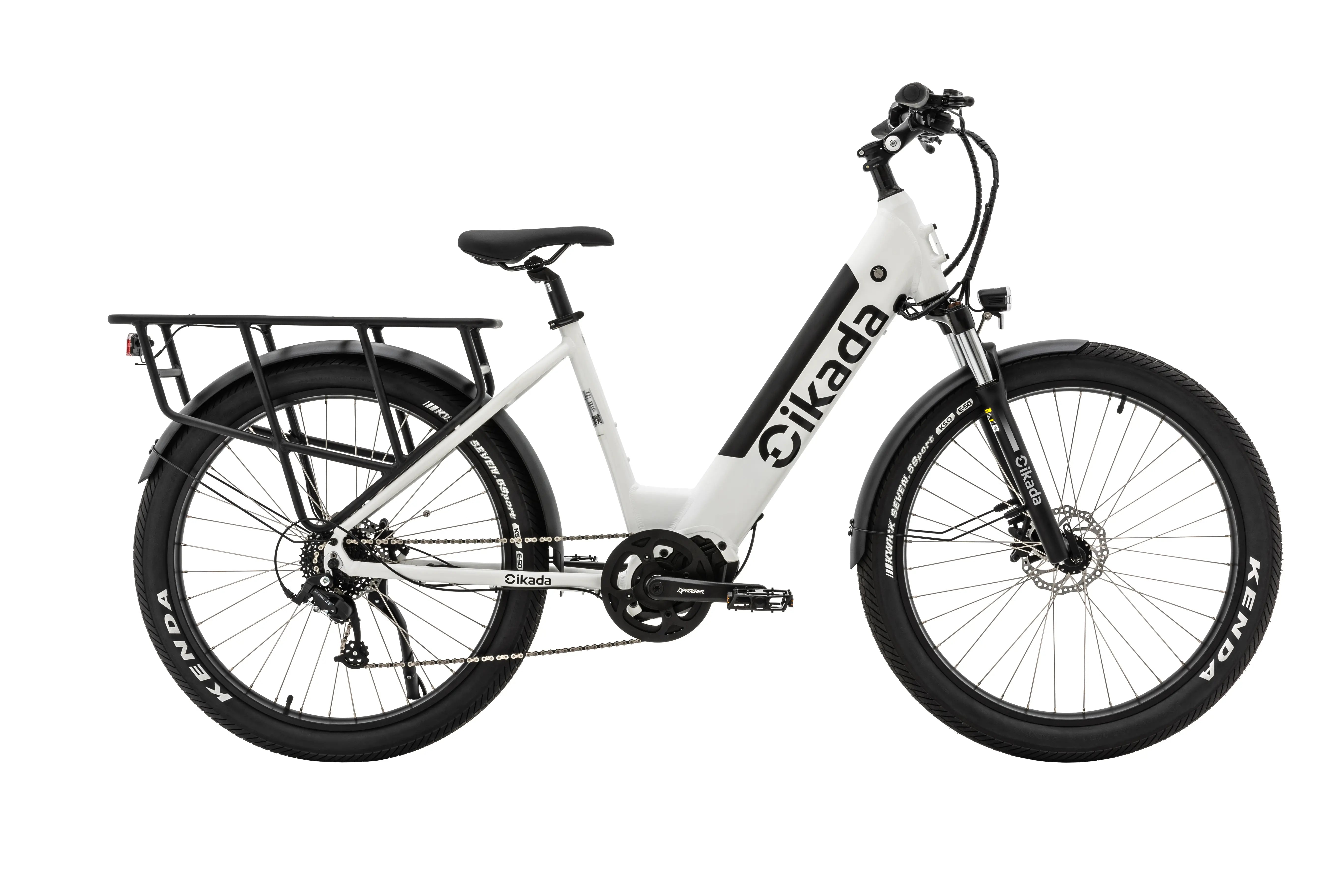

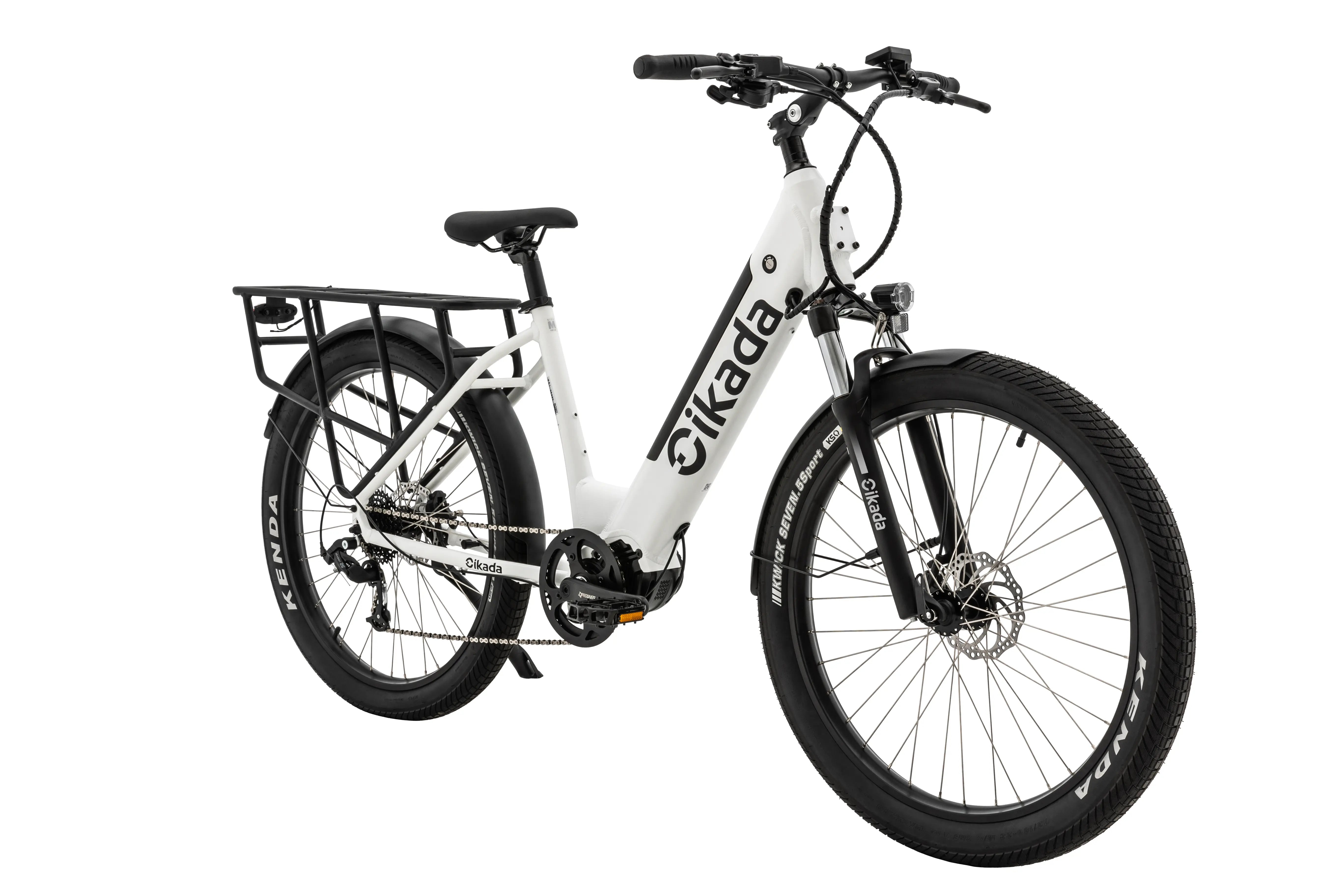

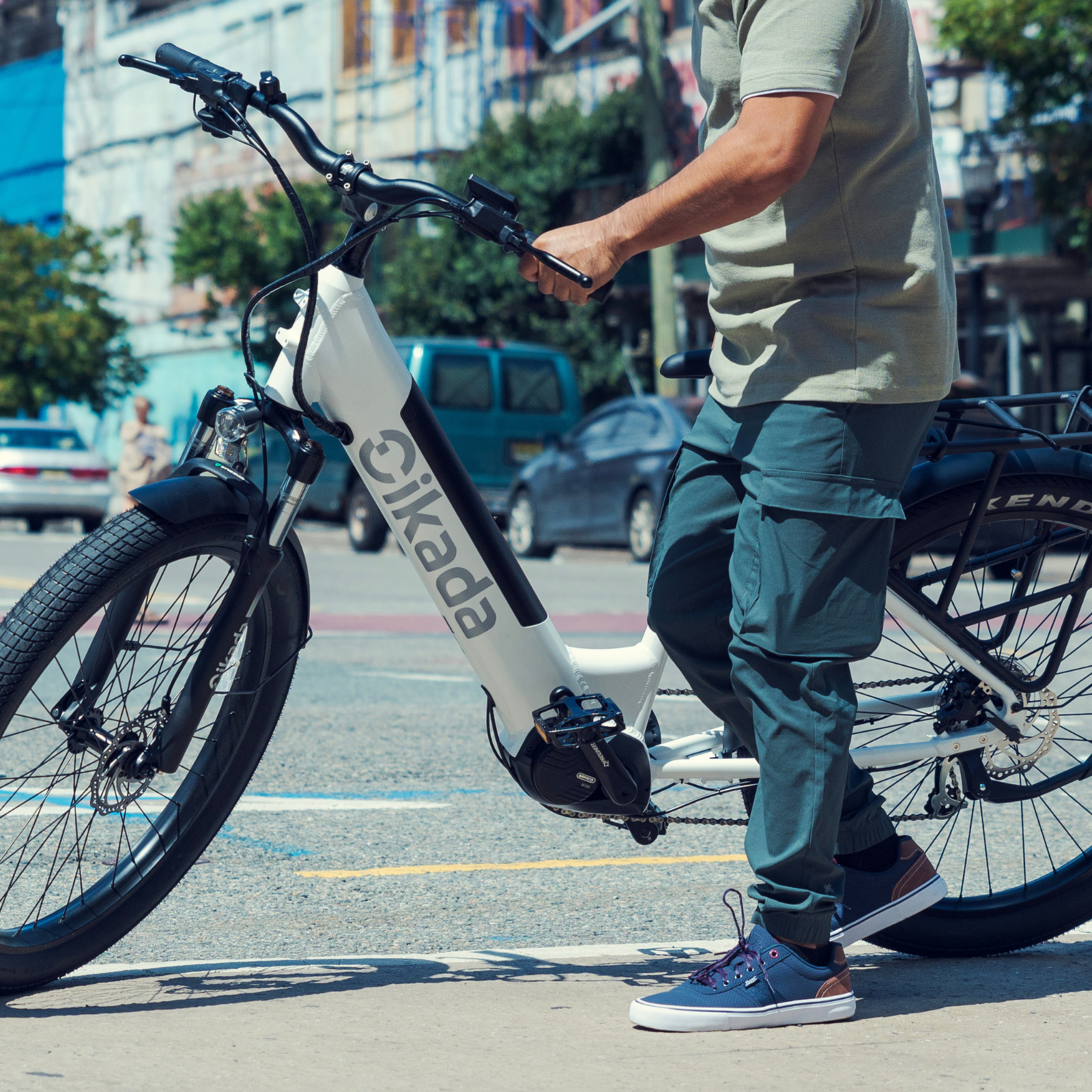

Cikada Touring e-Bike
The Cikada Touring e-Bike offers a new and exciting way to venture beyond the familiar. Equipped with a powerful 350W/80Nm mid-drive motor, top speed 32 km/h, known for its efficient power distribution, this bike not only empowers you to embrace longer rides with ease but also enhances handling and provides a natural riding feel, making it ideal for diverse terrains. Ascending hills becomes effortless with its five pedal-assist modes that makes any climb feel conquerable. Experience the thrill of extending your boundaries with the long lasting LG 720Wh battery, allowing you to make every journey more exciting and attainable than ever before!
Choose options
Mid-Drive Motor
BaFang 350W/80Nm
Power Supply
5 Pedal Assist Levels
Battery
720Wh (48V/15Ah) LG 21700
98% Pre-Assembled
Estimated Range
125km (78mi)
UL Certified
UL2271 & UL2849 Tested
Epic Rides Begin With Quality Components.

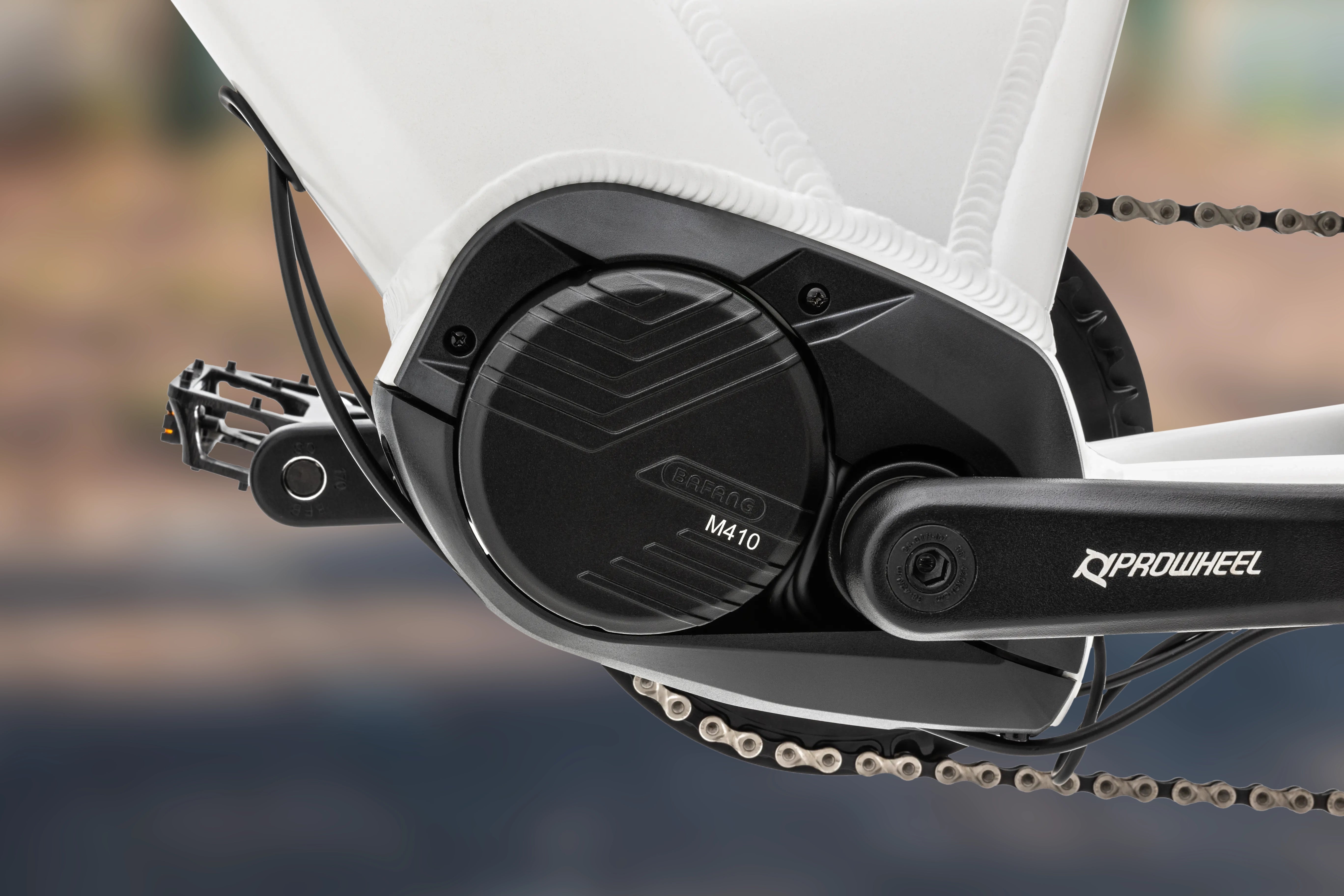

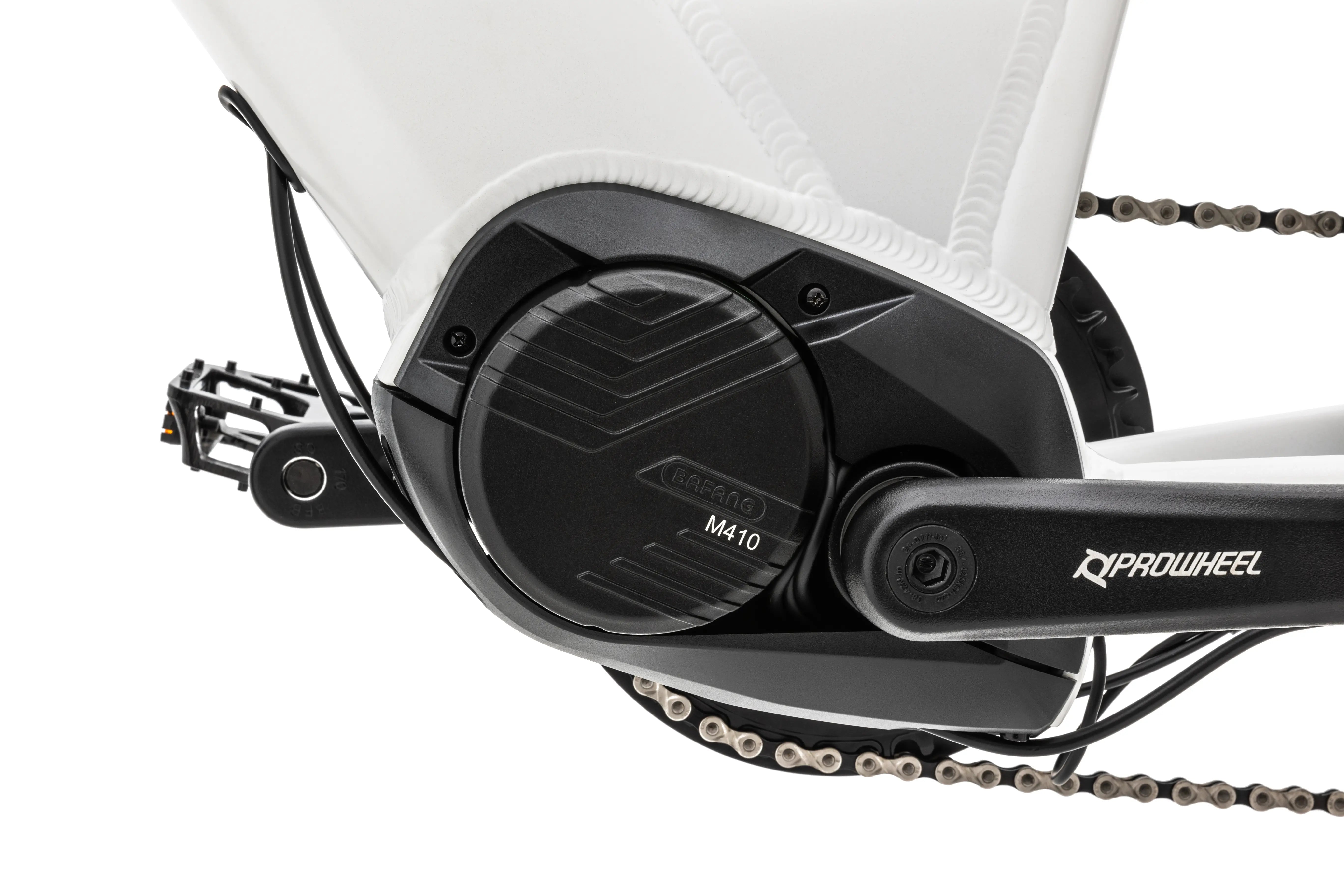

BaFang e-Motor
BaFang 350W/80Nm M410HD Mid-Drive Motor
BaFang is a world leader in the manufacturing of e-Bike motors. The Touring mid-drive motor provides robust and balanced power, optimizing performance for a smooth and efficient ride across all terrains.
Positioned at the bike's center, this mid-drive design ensures excellent weight distribution, significantly improving traction and handling. Its compact form melds flawlessly with the frame, further enhancing the overall riding experience by maintaining a low center of gravity and superior stability.

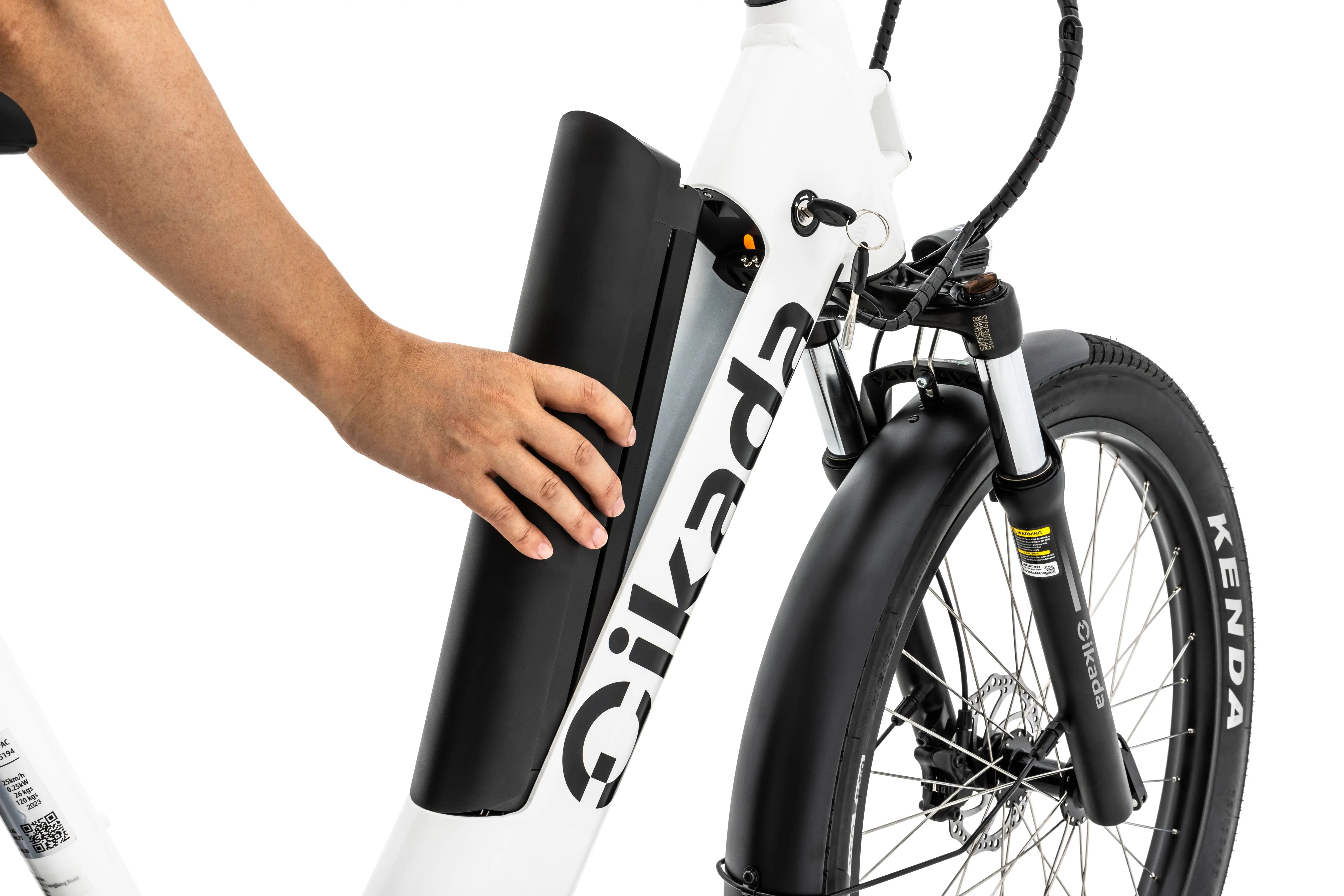

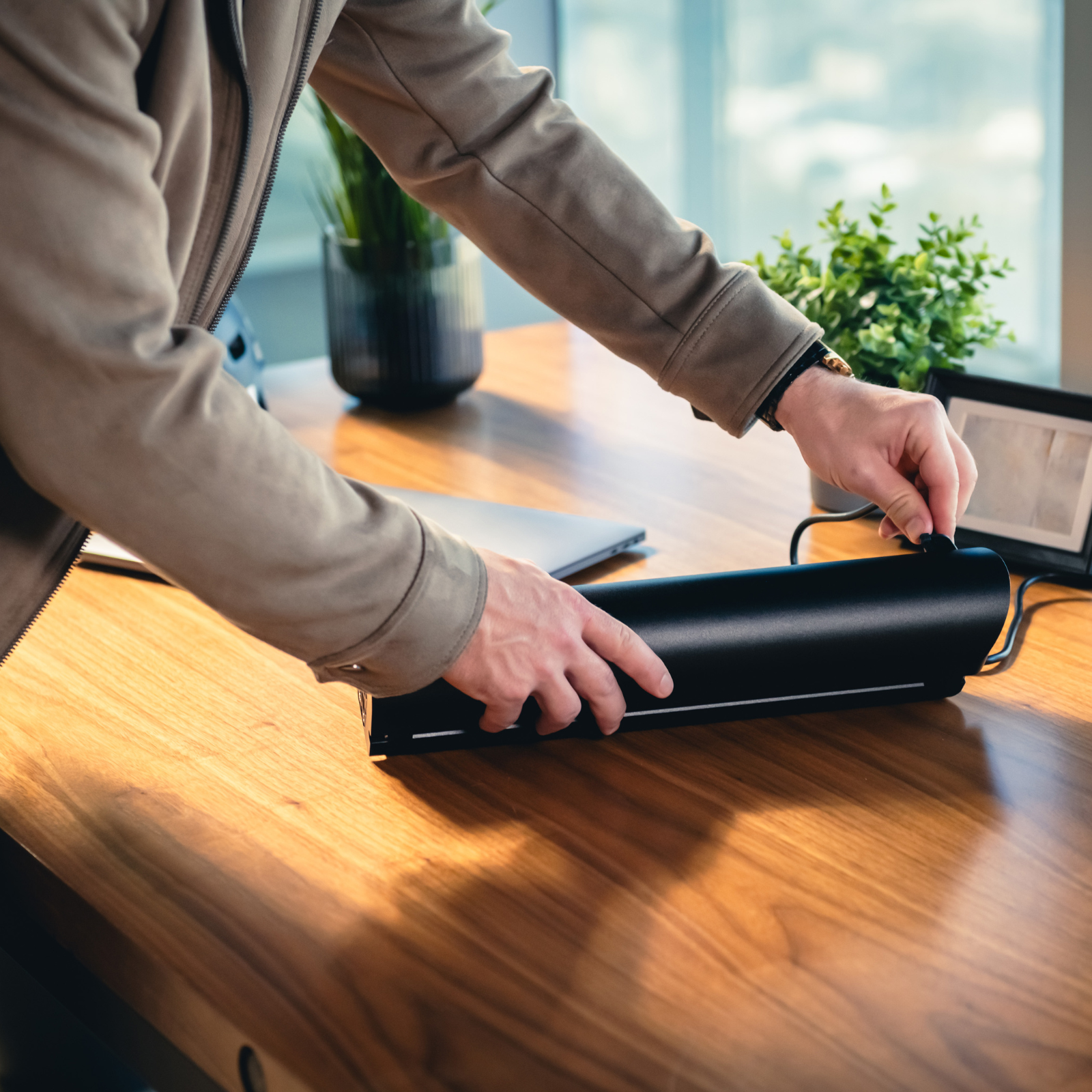

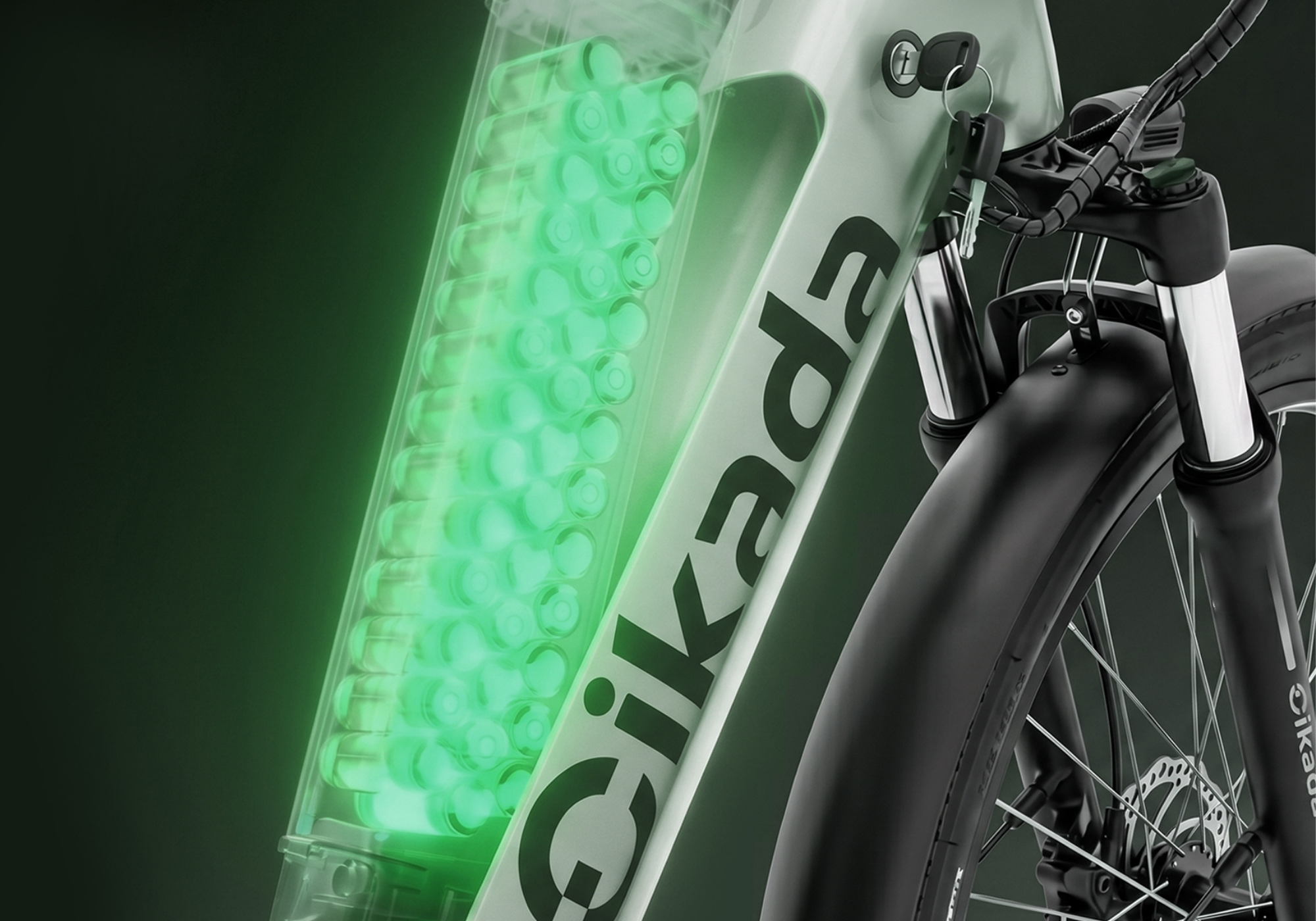

Removable Battery
720Wh LG 21700
This battery delivers superior power and durability, featuring an increased capacity for even longer rides. With its robust 720Wh capacity, this battery supports extensive rides without frequent recharges. It ensures an extended range, allowing cyclists to explore further with confidence.
Its removable and easily rechargeable design ensures convenience on the go. Enhanced with advanced safety protocols, it offers protection against overcharging, over-discharging, and overheating, making it a reliable choice for avid cyclists.

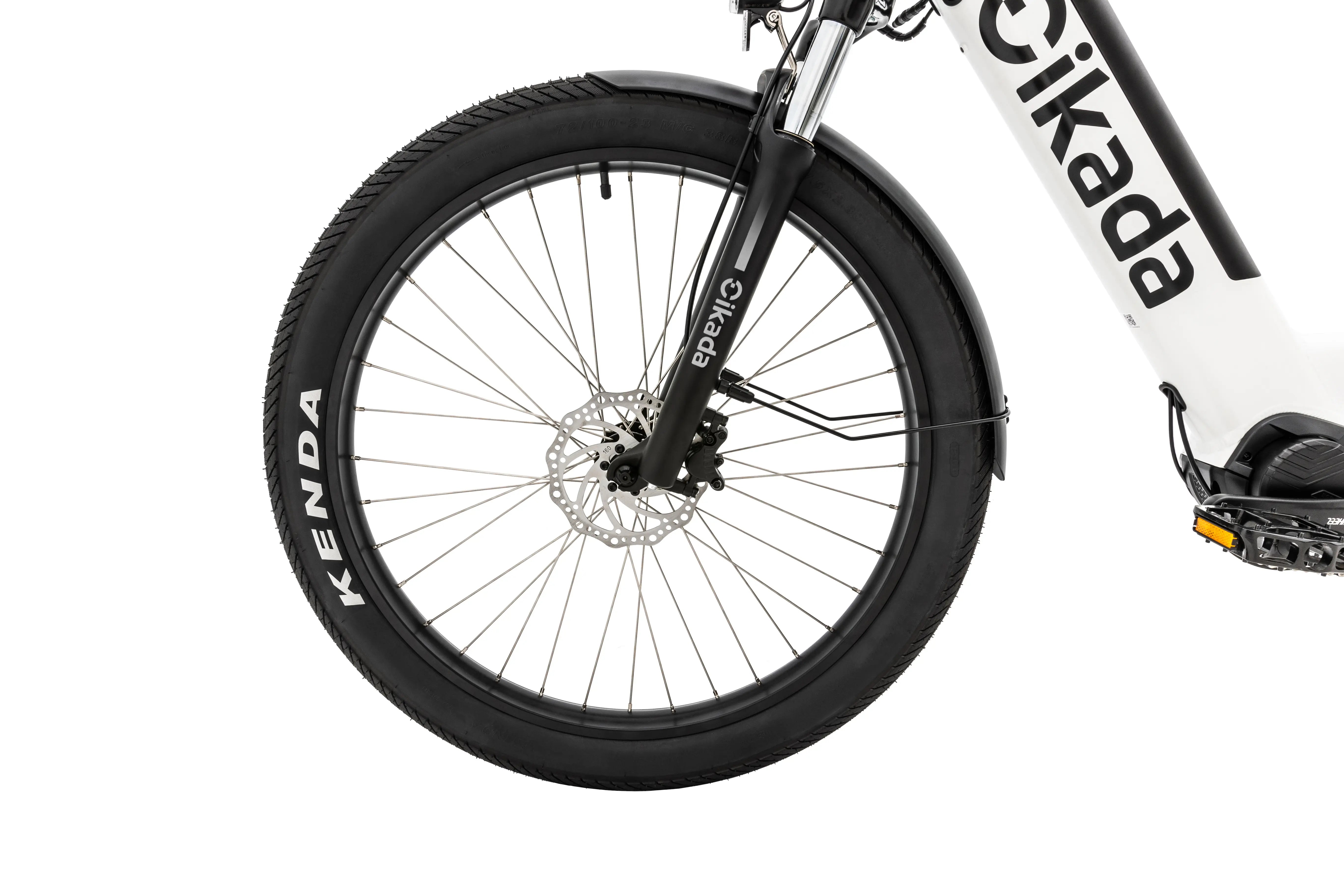

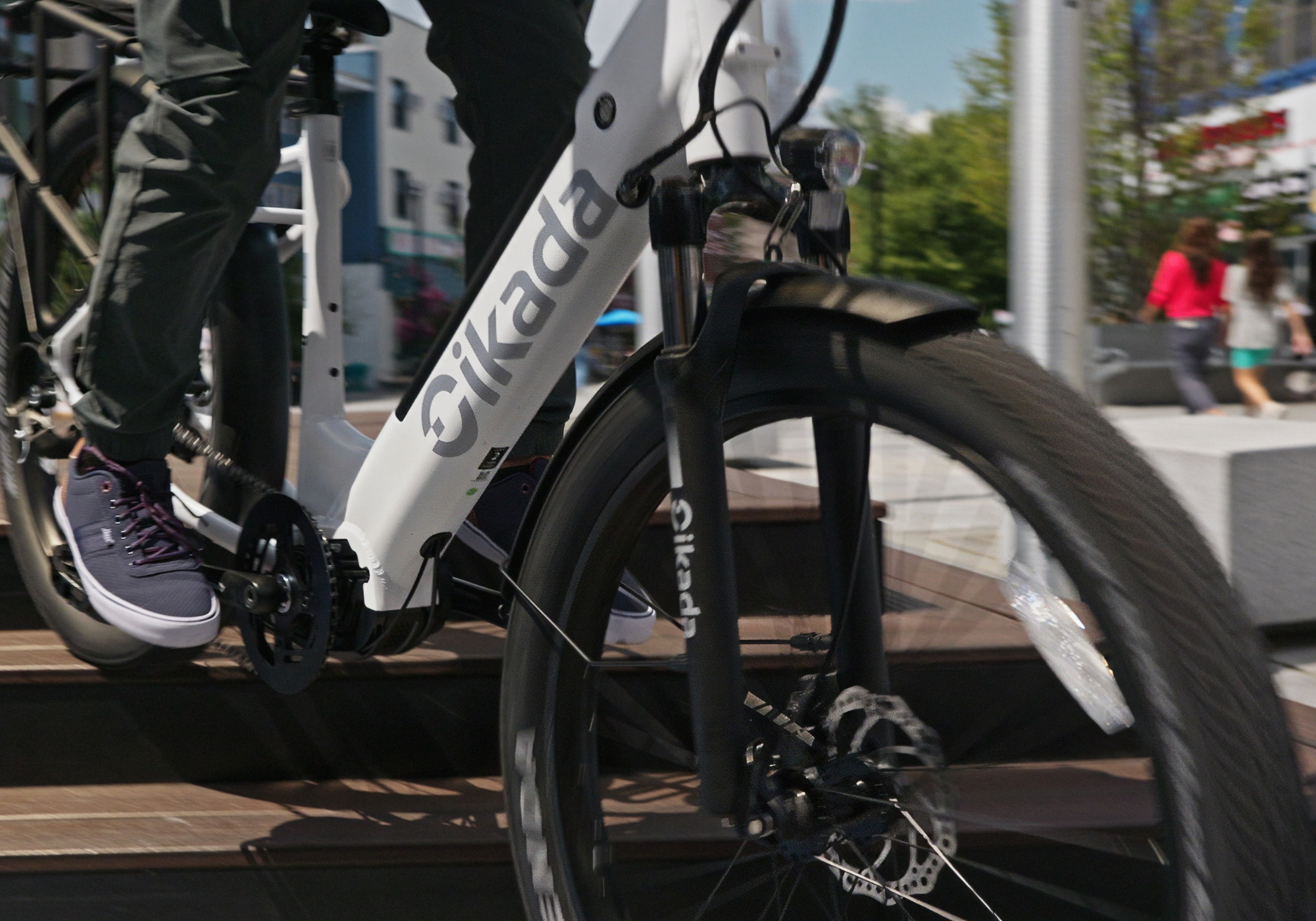

Kenda Kwick Seven.5 Sport Tires
Ideal for high-performance rides, combining exceptional speed, durability, and a smooth rolling tread. They feature a puncture-resistant K-Shield layer with ceramic particles to increase tire life and ensure reliability for long distances. A reflective sidewall enhances urban visibility, making these e-Bike certified tires perfect for urban adventures.

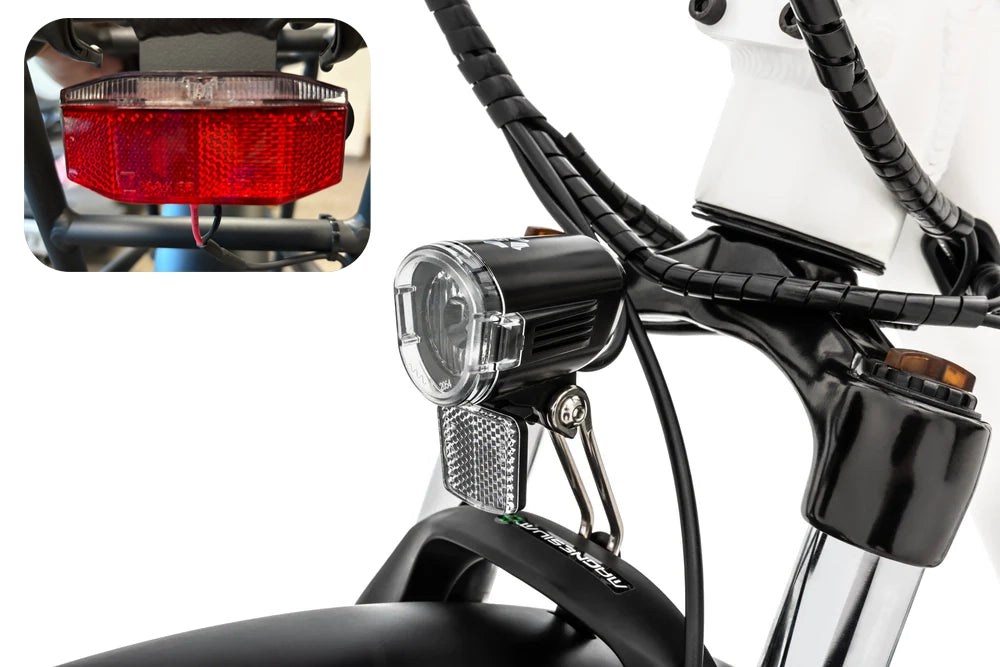

Headlight & Reflectors
Night riding is a breeze with the front headlight easily activated from the front display console, ensuring visibility and safety.
The Touring e-Bike features rear reflectors that illuminate when turned on.
The Cikada App
Get a personalized riding experience with the Cikada app, available on iOS and Android
Google Play Store Apple App StoreSpecifications
Power System
Motor: BaFang M410 350W mid-drive motor; 80Nm
Sensor: BaFang Integrated torque sensor
Battery: 720Wh (48V/15Ah) LG 21700 battery, 6-8hr charging time; removable for charging on or off the bike; integrated battery lock for added safety

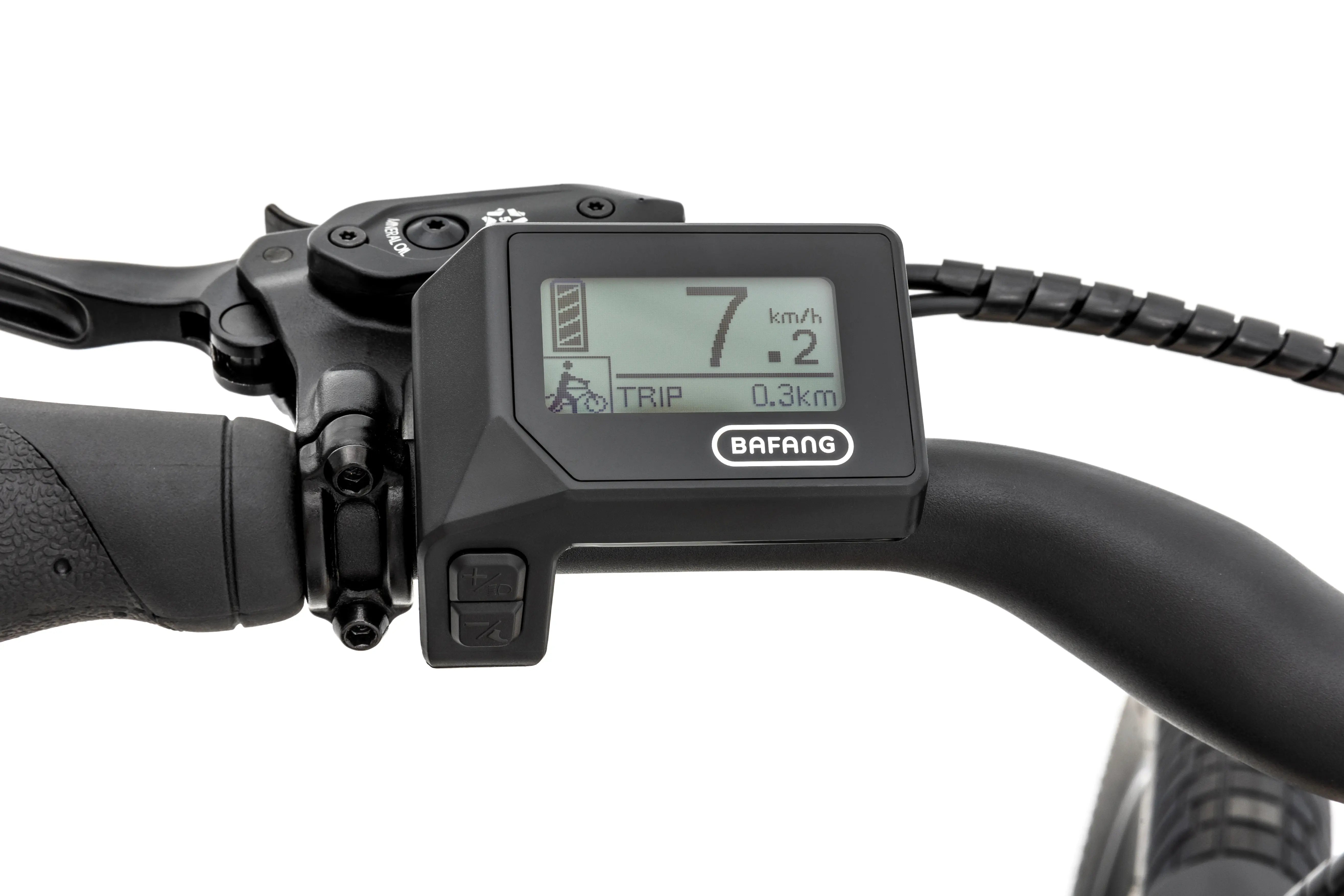

Display: BaFang with Bluetooth (5 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view)
Frameset
Frame: 6061 aluminum low step frame, 27.5"

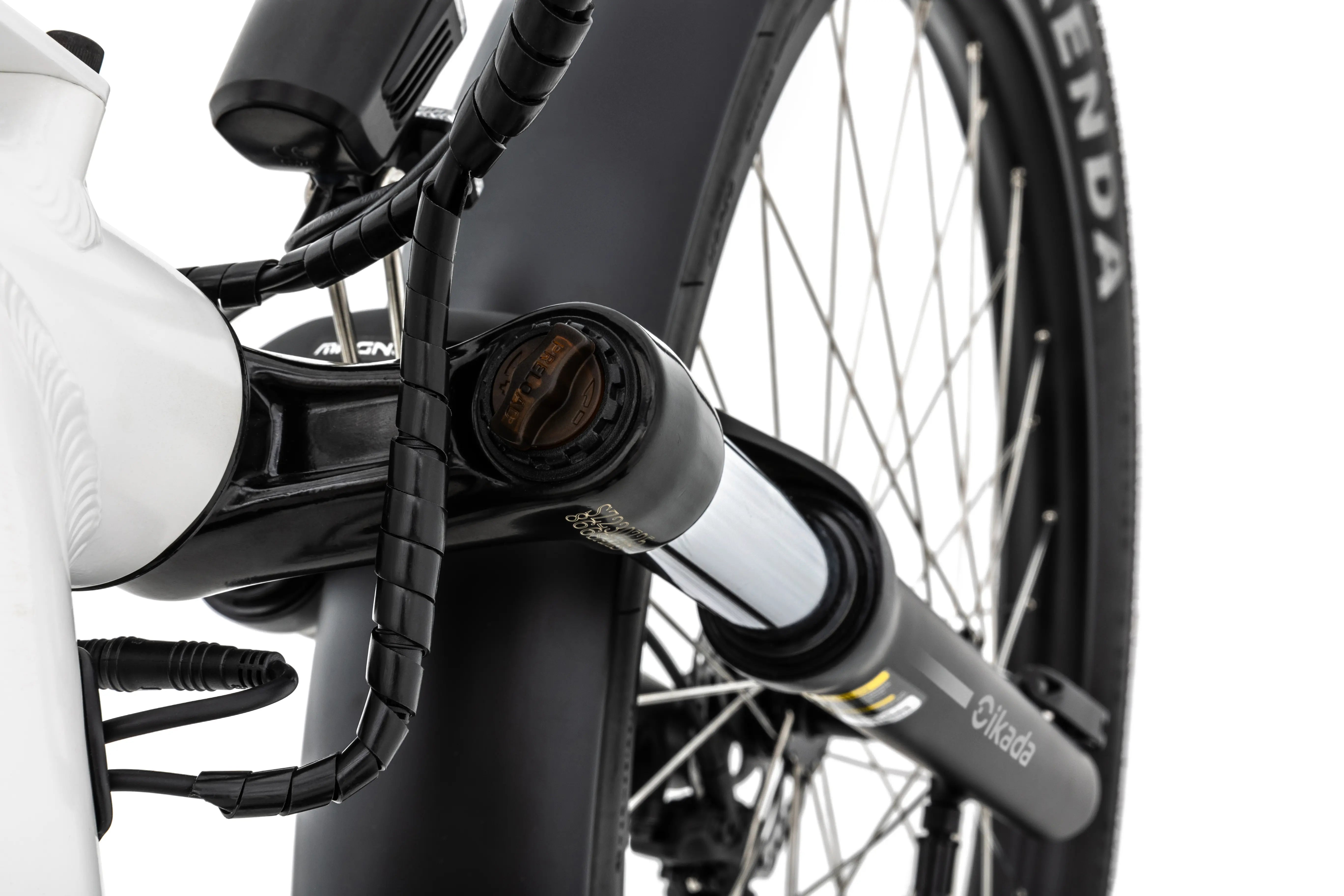

Fork: ZOOM suspension fork, 10mm x 110mm (0.4β x 4.3β), travel: 80mm (3.1β)
Wheels
Tires: Kenda Kwick Seven.5 Sport, anti-puncture with a reflector strip, 27.5*2.8"
Rims: Alloy 27.5β, double wall
Inner Tubes: Kenda A/V
Front Hub: Alloy, 13G spokes x3/8x100mm O.L.D.
Rear Hub: Alloy, 13G spokes x3/8x36Hx138mm O.L.D.
Interactivity
Compatible Applications: Cikada app (riding display/ride summary/ride history)
Displayed Data: Real-time speed/current time/battery capacity
Ride Summary: Ride date and time/route/total distance/ total time/average speed/maximum speed/ average HR/maximum HR/calories burned/ CO2 reduced/ speed graph/ HR graph
Ride History: Total distance/total time/ CO2 reduced/ total rides
Drive Train
Crankset: Prowheel 44T 170mm (6.7β), with chain cover
Shift Lever: Microshift TS-39 R, thumb shifters
Throttle: Twist style
Rear Derailleur: Microshift RD-M26
Cassette: Microshift, 8 speed, 11T/34T
Chain: KMC, e8S
Pedals: 9/16β steel axle with reflectors, size: 112mm x 108mm (4.4β x 4.3β)
Components

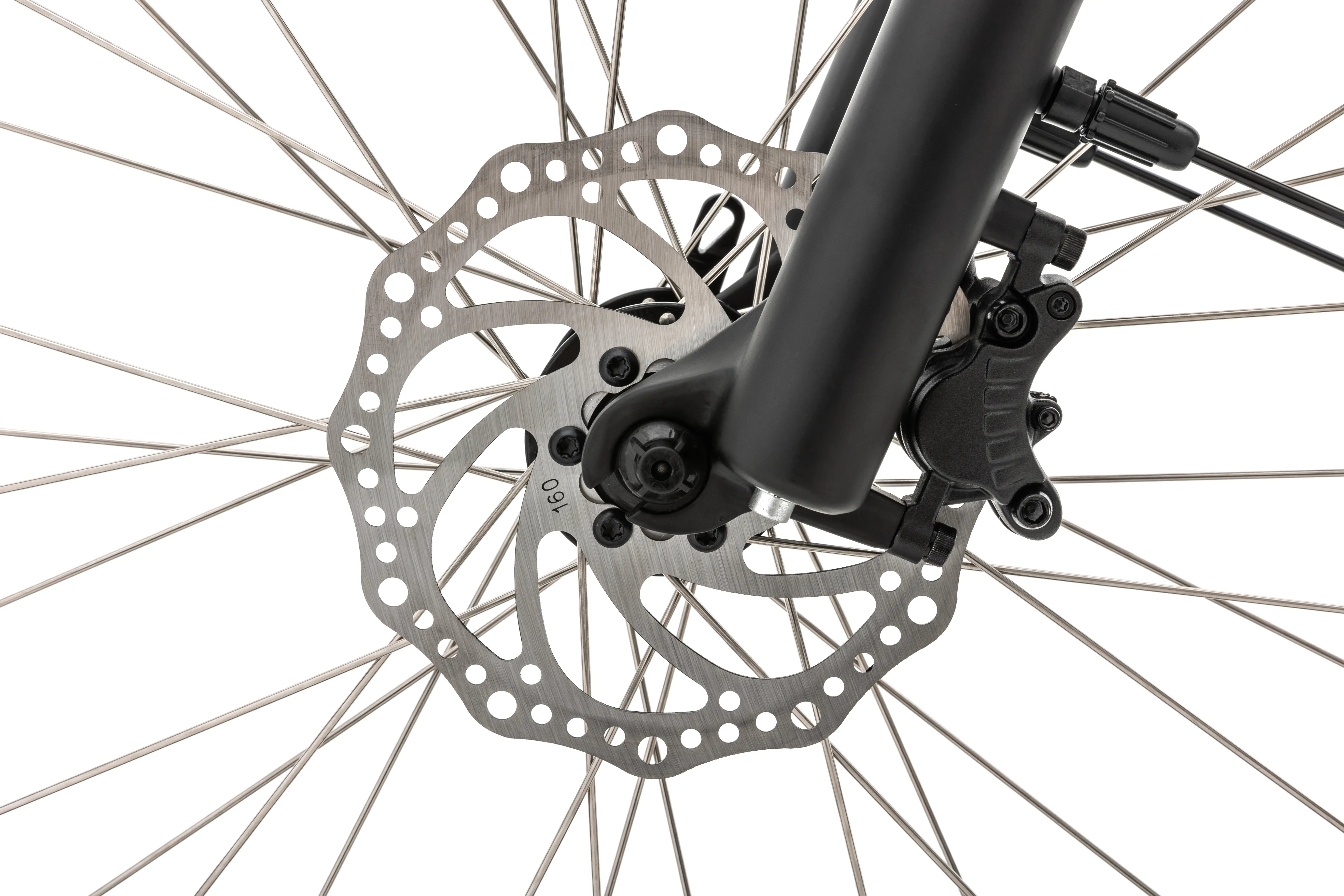

Brakes: Hydraulic disc brakes, rotor 160mm (6.3β); cut off power function
Handlebar: ZOOM, aluminum, rise bar; width 680mm (27β), barbore 31.8mm (1.25β)

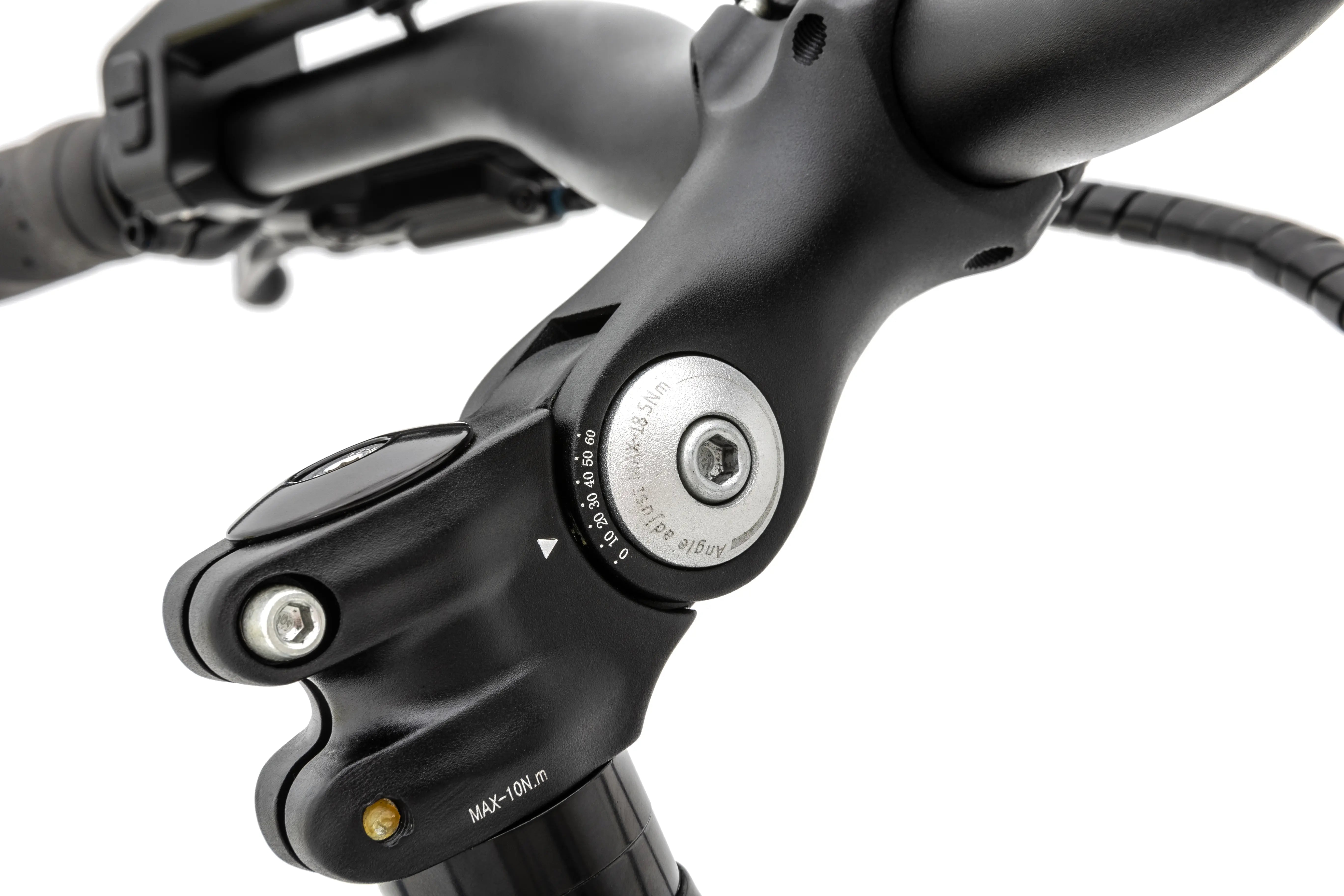

Stem: ZOOM, adjustable aluminum; extension 105mm (4β), barbore 31.8mm (1.25β)
Saddle: Anatomic polyurethane saddle with steel seat rail
Seatpost: ZOOM, aluminum (30.9mm x 250mm/ 1.2β x 10β for size S/M, 30.9mm x 300mm/ 1.2β x 12β for size M/L)
Grips: Velo gel Bottom Bracket: BB73
Additional Information
NW/GW: 30kg (66lb), 44kg (97lb)
Maximum User Weight: 140kg (309lbs)
Size Options
Small/Medium: 19β (48cm) for riders between 5β2β-5β8β (157cm - 173cm) in height
Medium/Large: 21β (53cm) for riders between 5β5β-6β4β (165cm - 193cm) in height
Safety Features
Front Headlight: on/off (operated via console)
Rear Reflector: Illuminates
Bell
Battery Lock
Power Cut-off: once braking system is activated
Speed Sensor: allows for a maximum speed of 32 km/h
Password for Console: required to access e-Bike data
Fender Guards
Kickstand

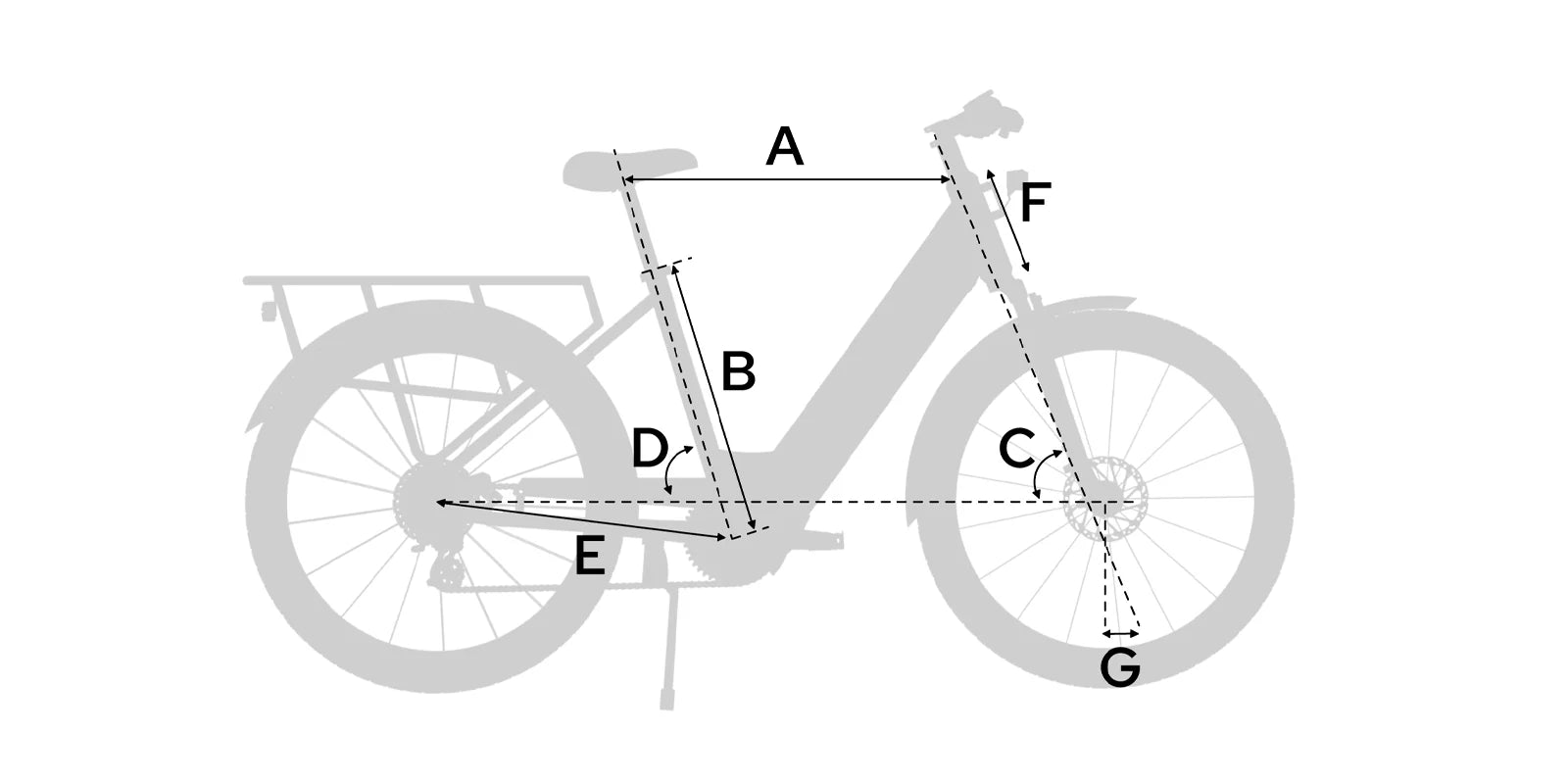

Touring e-Bike Geometry
| Part | Small/Medium | Medium/Large |
|---|---|---|
| A - Effective Top Tube | 617mm (24.3β³) | 616mm (24.3β³) |
| B - Seat Tube Length | 480mm (19β³) | 530mm (20.8β³) |
| C - Head Tube Angle | 69Β° | 69Β° |
| D - Seat Tube Angle | 73Β° | 73Β° |
| E - Chain Stay Length | 550mm (21.7β³) | 550mm (21.7β³) |
| F - Head Tube Length | 185mm (7β³) | 200mm (8β³) |
| G - Trail | 86.8mm (3.4β³) | 86.8mm (3.4β³) |
