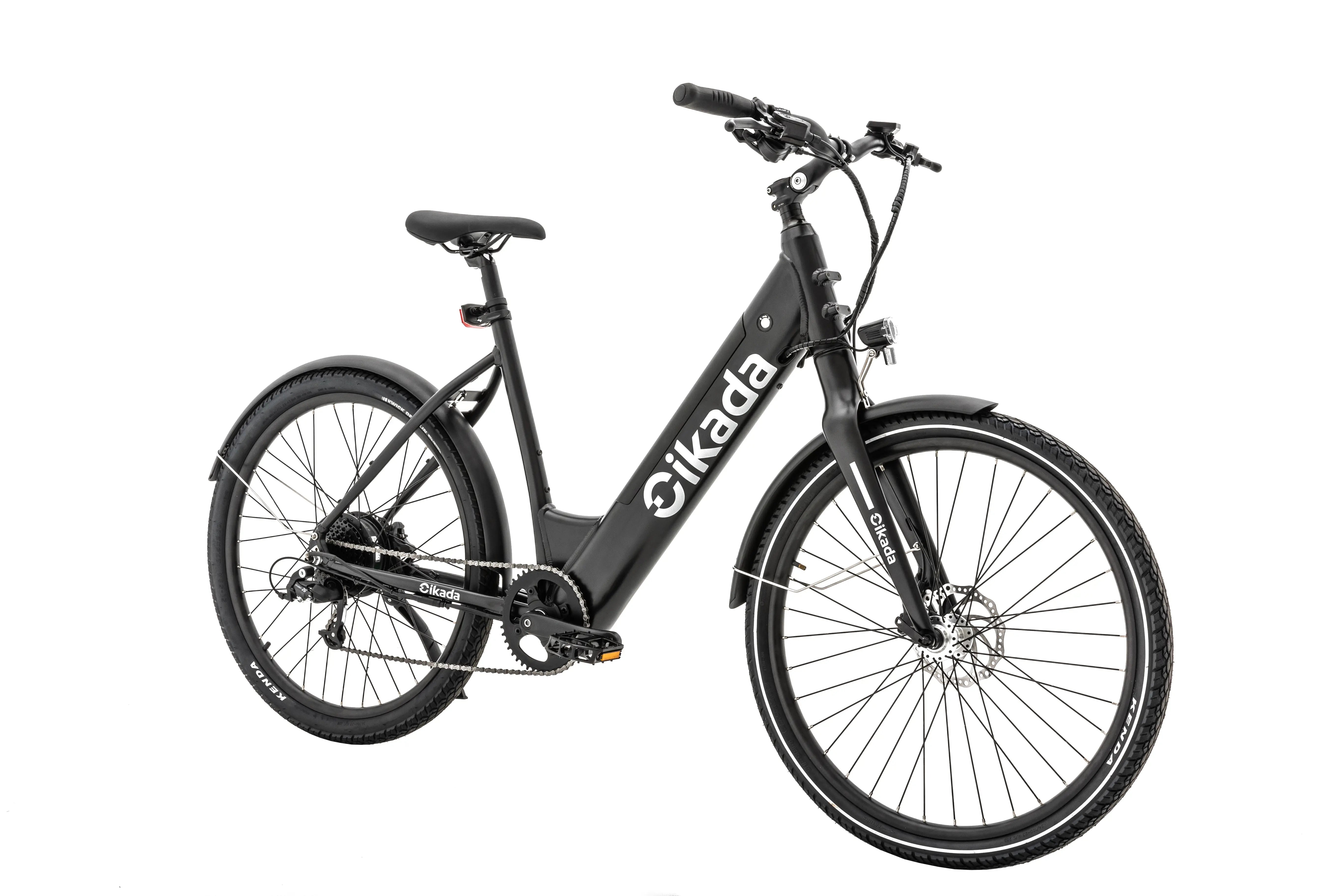

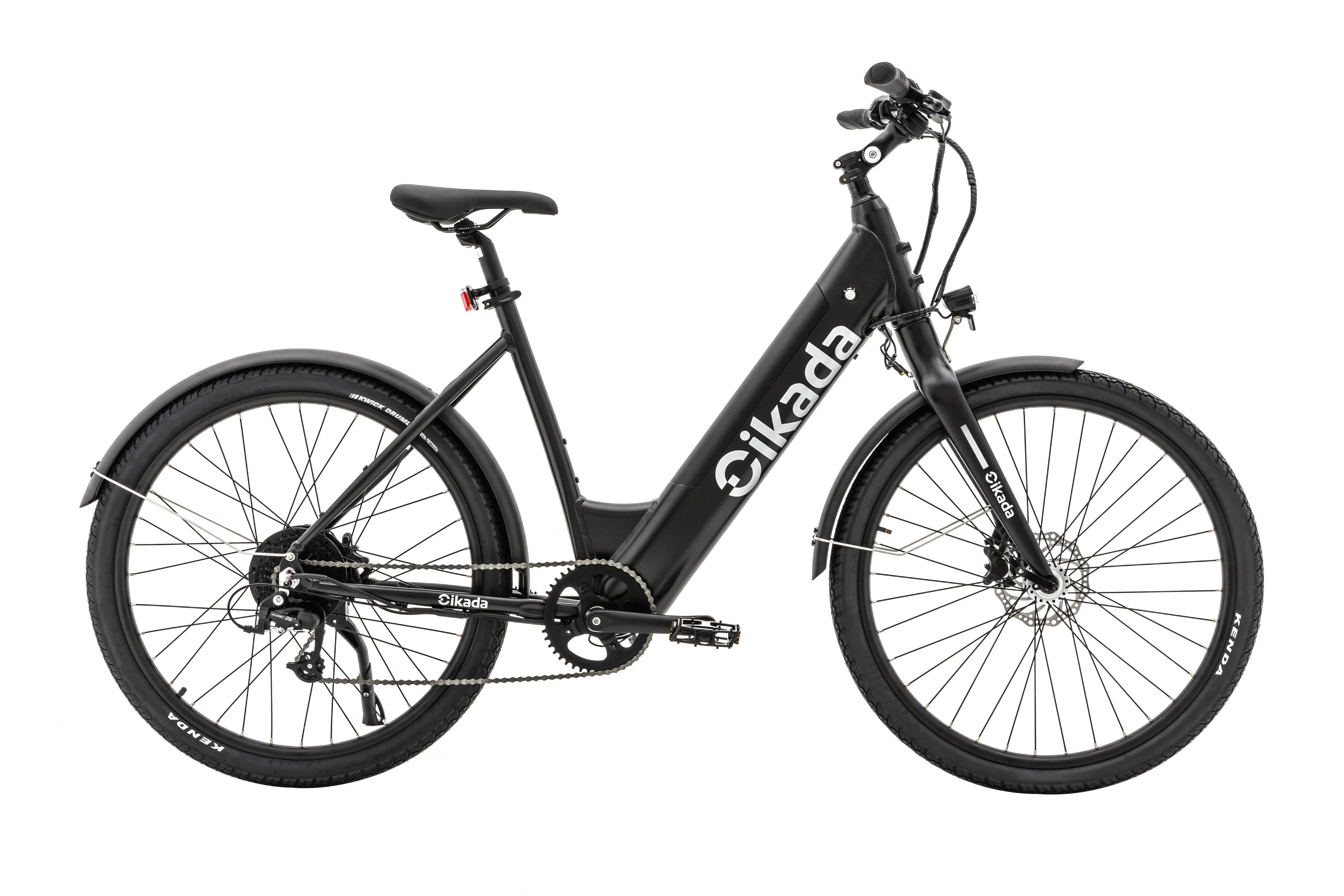

Cikada City e-Bike
The Cikada City e-Bike is your perfect partner for daily travel. With its easy access step-through design and robust performance from the rear-hub 500W/40Nm motor, top speed 32 km/h, this e-Bike integrates seamlessly into your routine. Its five pedal-assist modes help to propel you up hills providing a timely boost of extra pedalling power. Whether navigating urban streets or cruising through diverse terrains, the Cikada City e-Bike adjusts effortlessly, ensuring it's a reliable and efficient option for your transportation needs.
The Cikada City e-Bike is 85% pre-assembled upon arrival, so you can be on the road within minutes!
Choose options
Rear Hub Motor
BaFang 500W/40Nm
Power Supply
5 Pedal Assist Levels
Battery
480Wh (48V/10Ah) LG 21700
85% Pre-Assembled
Estimated Range
75km (47mi)
UL Certified
UL2271 & UL2849 Tested
Epic Rides Begin With Quality Components.
BaFang e-Motor
BaFang 500W/40Nm H400 Rear Drive Motor
BaFang is a world leader in the manufacturing of e-Bike motors. The City's rear drive motor delivers a high quality ride with powerful and efficient propulsion. It ensures a smooth and responsive ride on challenging terrains and its compact, lightweight design integrates seamlessly with our e-Bike, enhancing ride quality and stability.

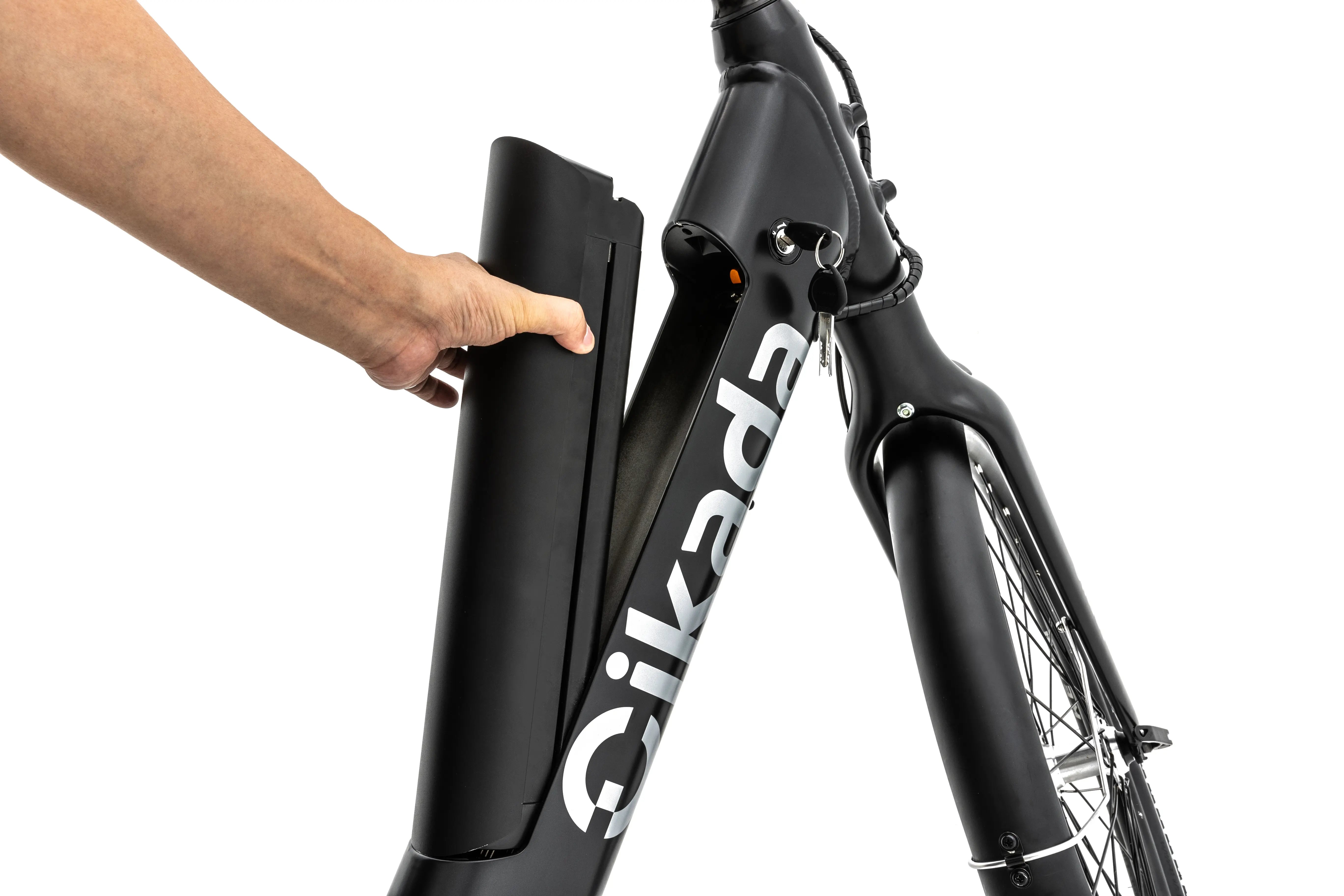

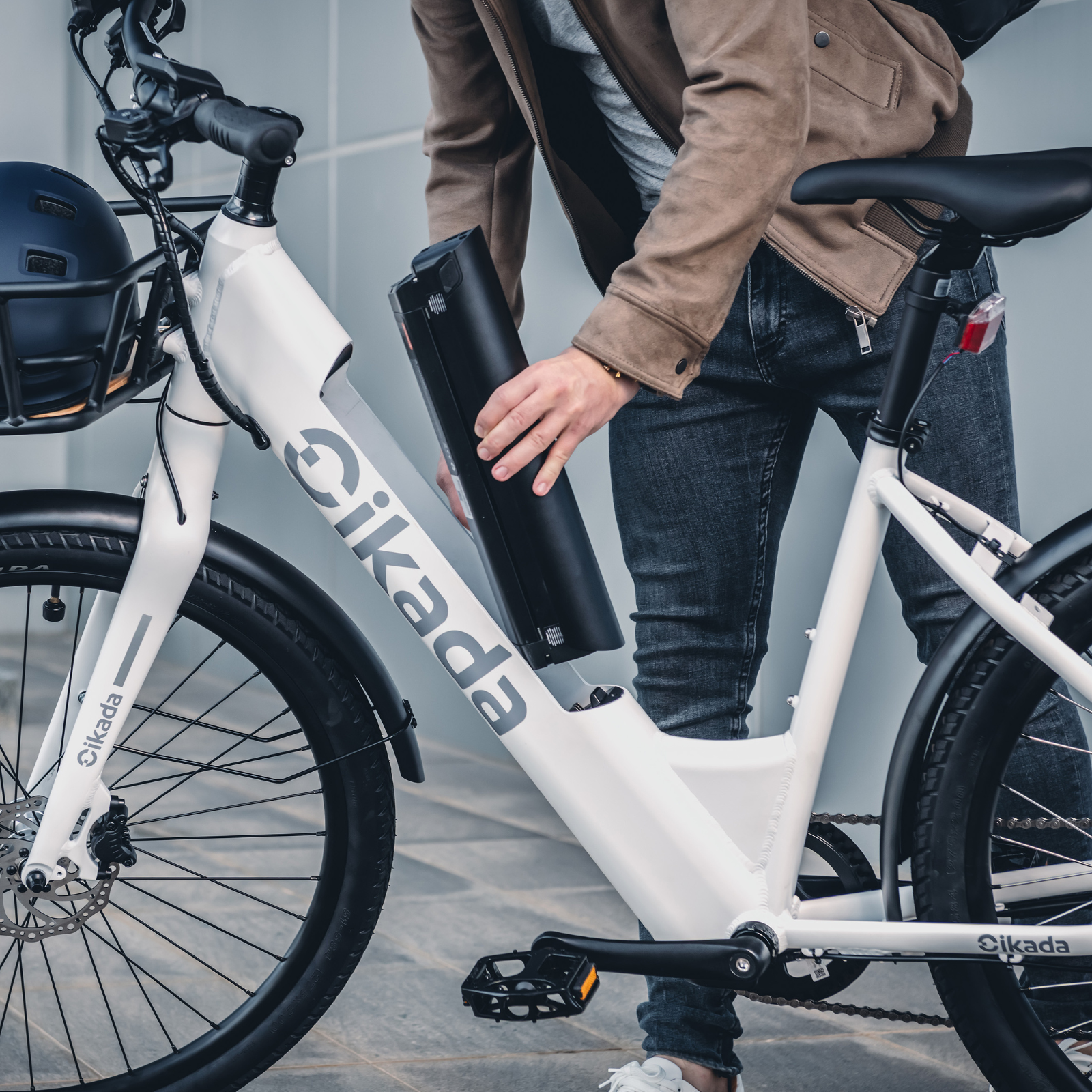

Removable Battery
480Wh LG 21700
Engineered with the highest safety features, the LG battery protects against overcharging, over-discharging, and overheating. The 480Wh battery provides long-lasting power and reliability, with a high capacity for extended rides and an easy-to-charge, removable design.

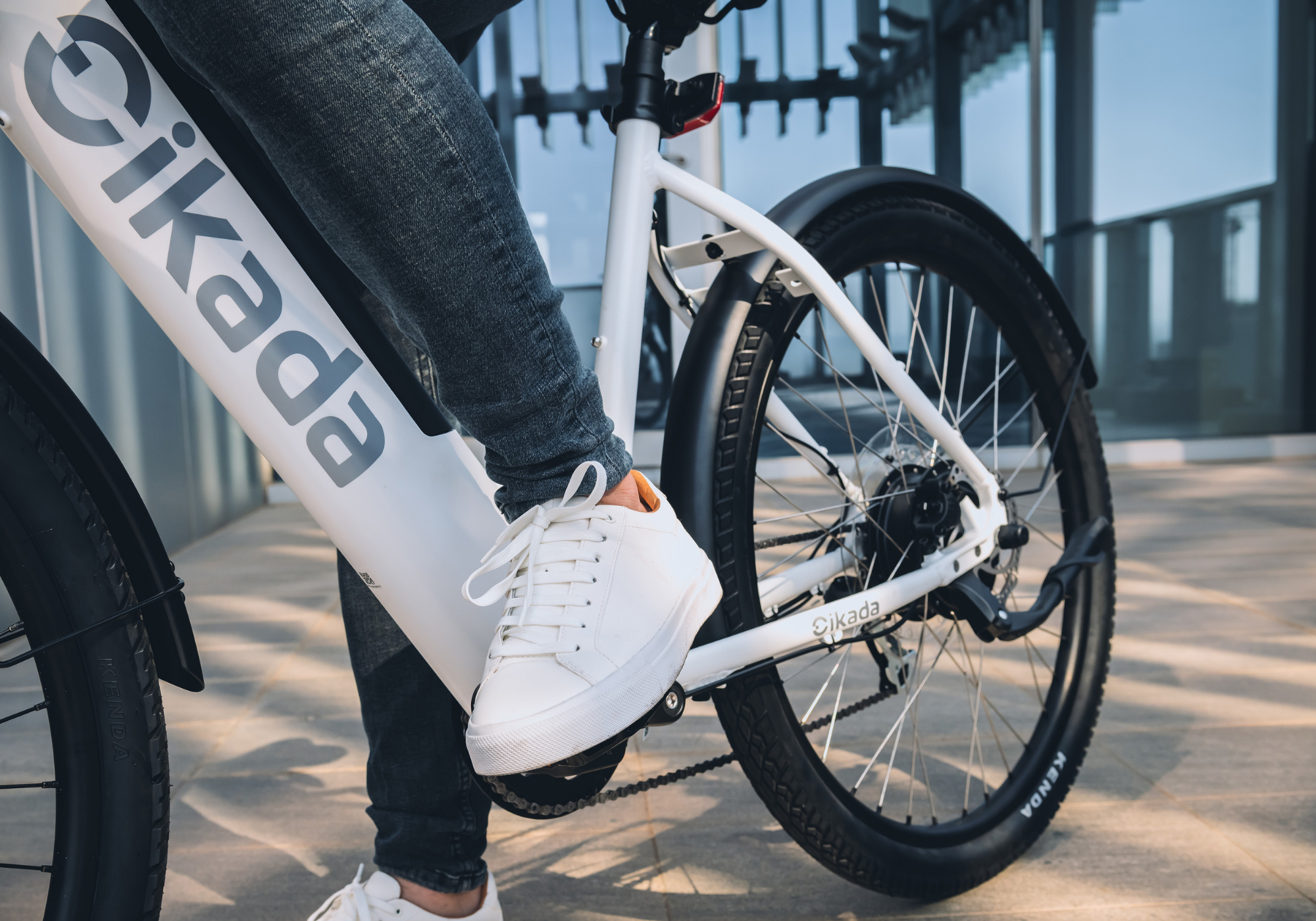

Kenda Kwick Drumlin Tires
Ideal for city rides and commutes, offer reliability and performance with a puncture-resistant K-Shield layer. Featuring a tread pattern for excellent grip and stability on urban roads, they also include burly side knobs for confidence and grip in wet or loose conditions, making them e-Bike certified and a dependable companion for any urban cyclist.

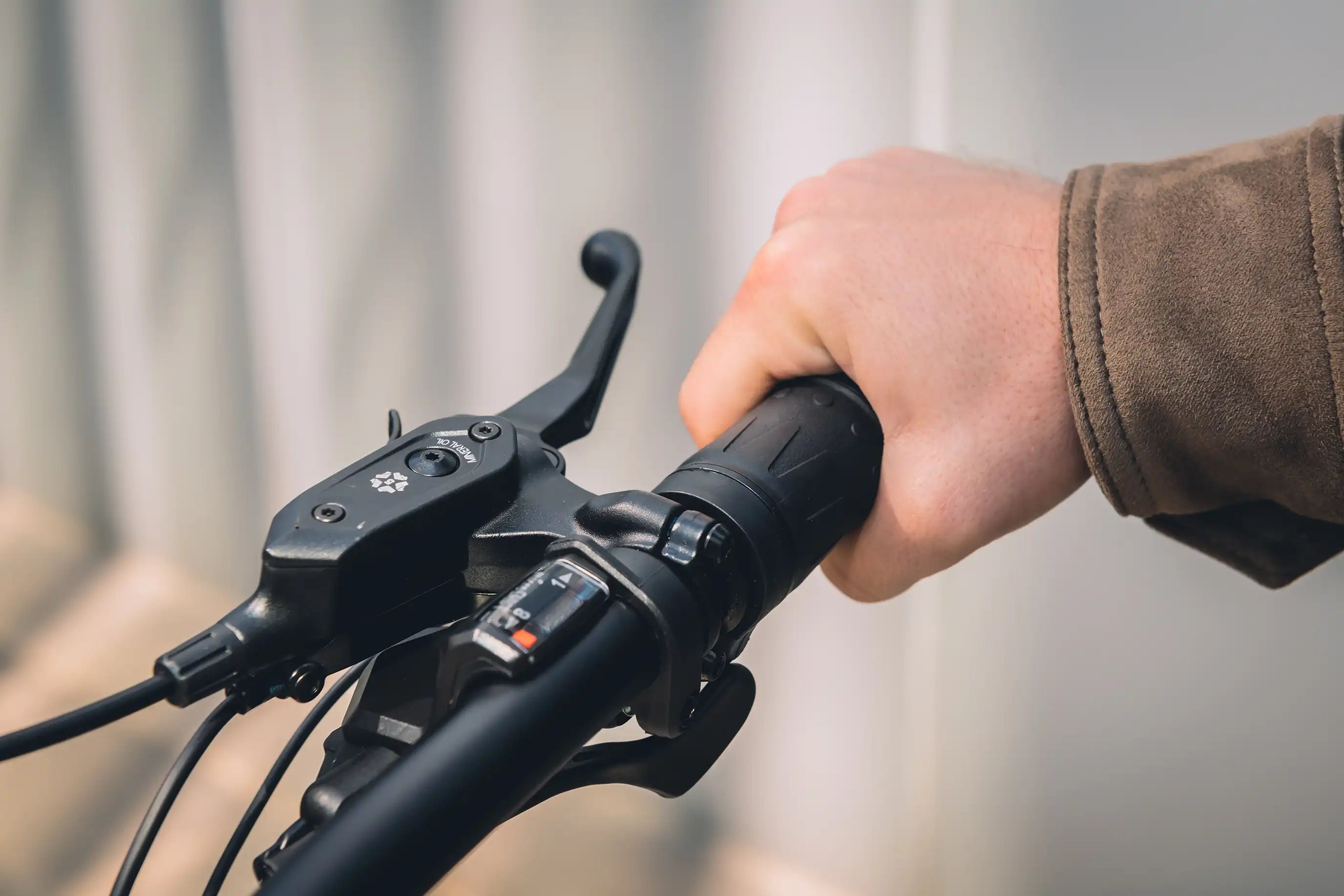

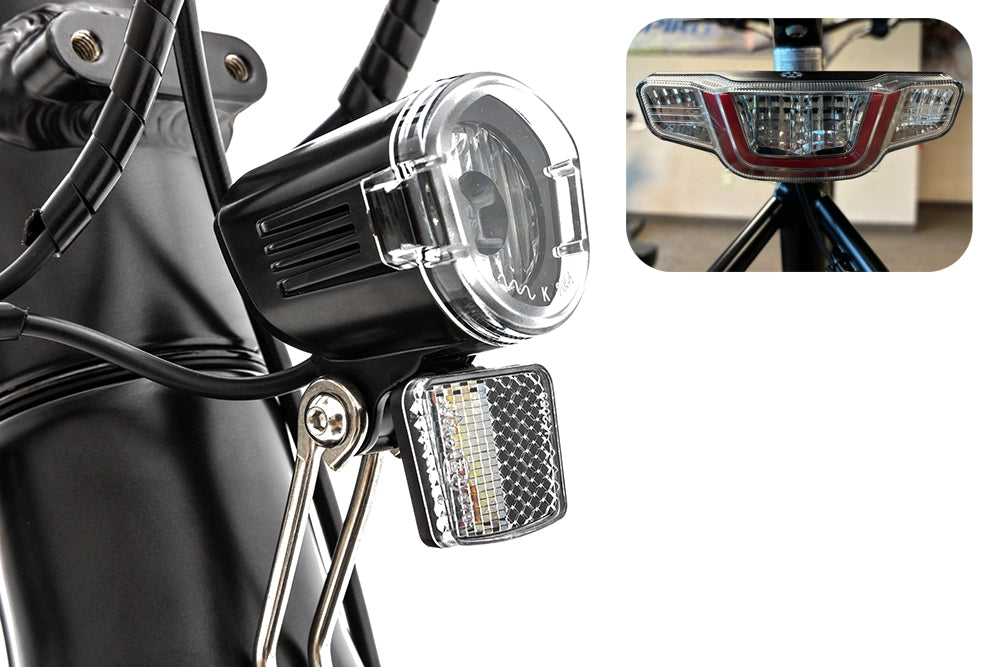

Turn Signals & Headlight
The City e-Bike boasts rear turn signals, enhancing safety on urban roads. Activated by convenient buttons on the handlebars, they provide clear signals to other road users.
Moreover, a front headlight, controlled via the front display console, illuminates your way during evening rides, ensuring visibility and security.
The Cikada App
Get a personalized riding experience with the Cikada app, available on iOS and Android
Google Play Store Apple App StoreSpecifications
Power System
Motor: BaFang H400 500W rear hub motor; 40Nm
Sensor: BaFang Dual Hall speed sensor
Battery: 480Wh (48V/10Ah) LG 21700 battery, 6-8h charging time; removable for charging on or off the bike; integrated battery lock for added safety
Display: BaFang with Bluetooth (5 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view)
Frameset
Frame: 6061 aluminum low step frame, 27.5"
Fork: Alloy rigid fork, 10mm x 100mm (0.4β x 4β)
Wheels
Tires: Kenda Kwick Drumlin, anti-puncture with a reflector strip 27.5*2.0"
Rims: Alloy 27.5β, double wall
Inner Tubes: Kenda A/V
Front Hub: Alloy, 13G spokes x3/8x36Hx100mm O.L.D.
Rear Hub: Hub drive motor, alloy, 13G spokes x3/8x36Hx138mm O.L.D.
Interactivity
Compatible Applications: Cikada app (riding display/ride summary/ride history)
Displayed Data: Real-time speed/current time/battery capacity
Ride Summary: Ride date and time/route/total distance/ total time/average speed/maximum speed/ average HR/maximum HR/calories burned/ CO2 reduced/ speed graph/ HR graph
Ride History: Total distance/total time/ CO2 reduced/ total rides
Drive Train
Crankset: Prowheel 44T 170mm (6.7β), with chain cover
Shift Lever: Microshift TS-39 R, thumb shifters
Throttle: Twist style
Rear Derailleur: Microshift RD-M26
Cassette: Microshift, 8 speed, 11T/34T
Chain: KMC, Z8.3
Pedals: 9/16β steel axle with reflectors, size: 112mm x 108mm (4.4β x 4.3β)
Components

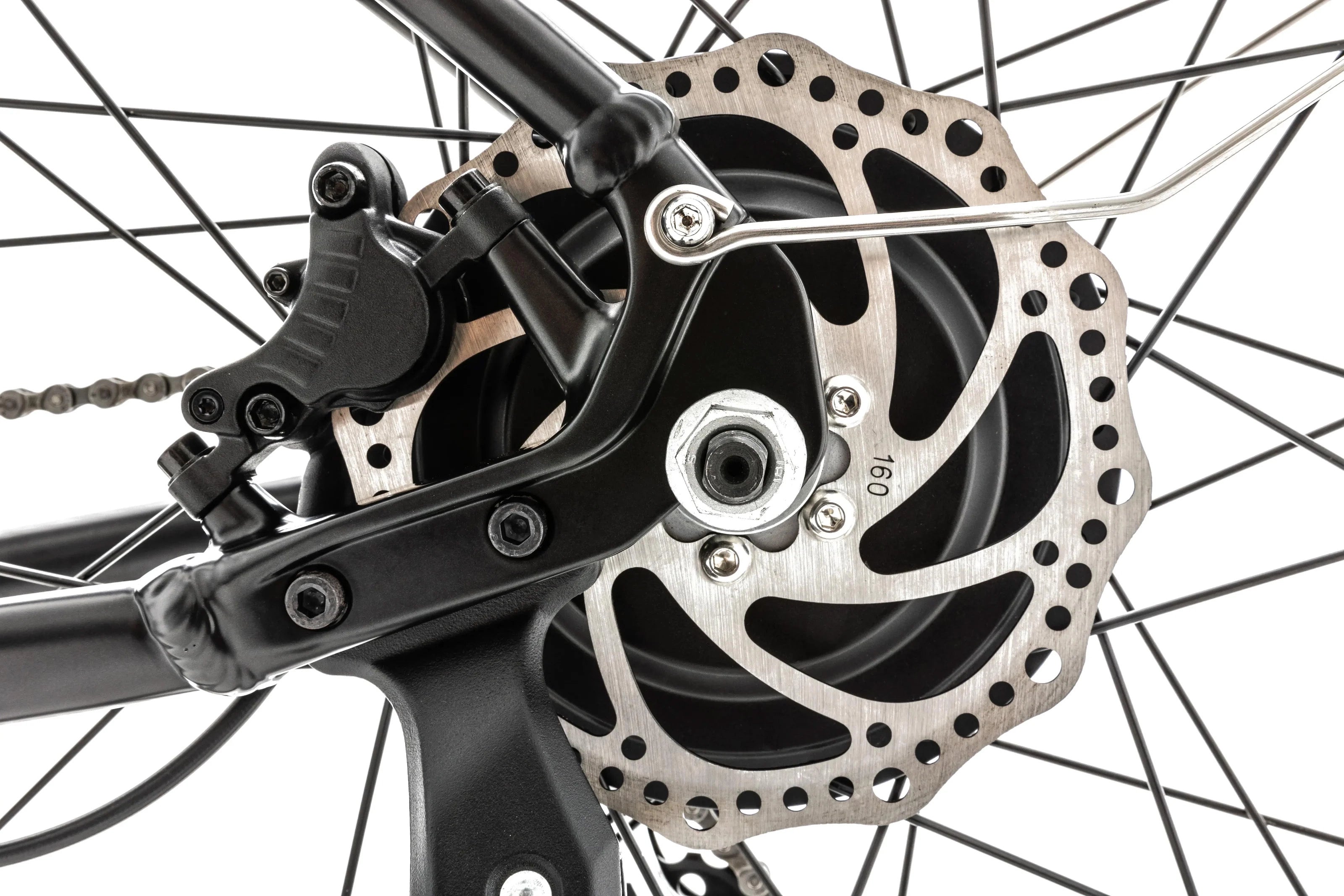

Brakes: Hydraulic disc brakes, rotor 160mm (6.3β); cut off power function
Handlebar: ZOOM, aluminum, rise bar; width 680mm (27β), barbore 31.8mm (1.25β)
Stem: ZOOM, adjustable aluminum; extension 105mm (4.0β), barbore 31.8mm (1.25β)
Saddle: Anatomic polyurethane saddle with a steel seat rail
Seatpost: ZOOM, aluminum (30.9mm x 250mm/ 1.2β x 10β for size S/M, 30.9mm x 300mm/ 1.2β x 12β for size M/L)
Grips:Velo gel
Bottom Bracket: BB73
Additional Information
NW/GW: 24kg (53lb), 37.5kg (83lb)
Carton Size: 66.1x12.8x34.8" (167.9x32.5x88.4cm)
Maximum User Weight: 140kg (309lb)
Size Options
Small/Medium: 19β (48cm) for riders between 5β2β-5β8β (157cm - 173cm) in height
Medium/Large: 21β (53cm) for riders between 5β5β-6β4β (165cm - 193cm) in height
Safety Features
Front Headlight: on/off (operated via console)
Taillight: illuminated, turn signals
Horn
Battery Lock
Power Cut-off: once braking system is activated
Speed Sensor: allows for a maximum speed of 32 km/h
Password for Console: required to access e-Bike data
Fender Guards
Kickstand

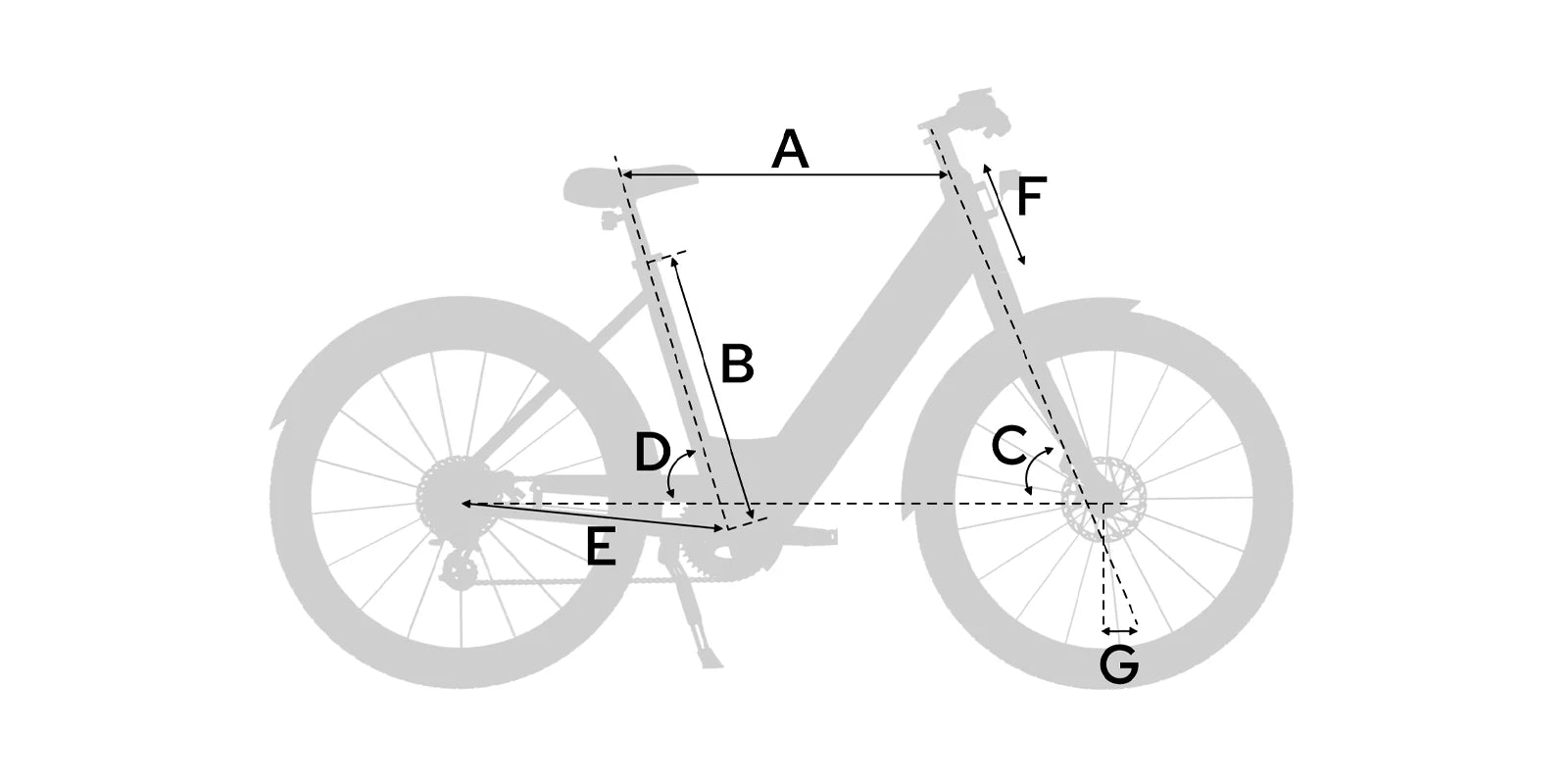

City e-Bike Geometry
| Part | Small/Medium | Medium/Large |
|---|---|---|
| A - Effective Top Tube | 623mm (24.5β³) | 621mm (24.4β³) |
| B - Seat Tube Length | 480mm (19β³) | 530mm (20.8β³) |
| C - Head Tube Angle | 69Β° | 69Β° |
| D - Seat Tube Angle | 72.5Β° | 72.5Β° |
| E - Chain Stay Length | 485mm (19β³) | 485mm (19β³) |
| F - Head Tube Length | 185mm (7β³) | 200mm (8β³) |
| G - Trail | 80mm (3.1β³) | 80mm (3.1β³) |
